How to Replace the Oxygen (O2) Sensor on a 1997 Ford Ranger

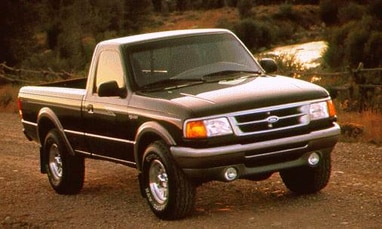

[Image: car_image]

Replacing an oxygen sensor is one of the most impactful DIY repairs you can do to help restore fuel efficiency, improve engine performance, and reduce emissions. Whether your 1997 Ford Ranger is throwing a check engine light code like P0131 or P0155—or it’s just been a long time since you’ve replaced your O2 sensors—this guide will walk you through everything you need to know about swapping them out.

Oxygen sensors play a crucial role in your engine’s ability to “breathe” and optimize combustion. They monitor the amount of oxygen in your exhaust gases and send that data to your car’s engine control unit (ECU), which then adjusts the air-fuel mixture for ideal performance. Over time, O2 sensors wear down, become less responsive, and can even cause symptoms like poor fuel economy, rough idling, and failed emissions tests. Fortunately, replacing them yourself is usually a straightforward process with just a few basic tools.

Let’s walk through everything you need to know to replace your 1997 Ford Ranger’s oxygen sensors—from part recommendations to tools and step-by-step instructions.

Best Replacement Oxygen Sensors for a 1997 Ford Ranger

Many vehicles feature multiple oxygen sensors, including dedicated upstream and downstream units on each bank of cylinders. This layout allows the engine control module (ECM) to fine-tune fuel delivery and monitor catalytic converter performance. Depending on your engine configuration, your 1997 Ford Ranger may require two or four sensors total. Fortunately, the DELPHI ES20316 and BOSCH 15719 are designed as direct-fit upstream, and downstream replacements, respectively, for the factory sensors, ensuring compatibility and proper fit. Whether you're chasing down a diagnostic code for Bank 2 Sensor 1 or simply replacing an aging downstream unit, these sensors will get the job done right.

Recommended upstream part	Recommended downstream part
DELPHI ES20316 The DELPHI ES20316 is the recommended upstream part for your 1997 Ford Ranger.	BOSCH 15719 The BOSCH 15719 is the recommended downstream part for your 1997 Ford Ranger.

As a general guideline, inline engines usually have one upstream and one downstream sensor, while V-type engines like V6s and V8s typically require two of each—one pair per bank. Always double-check your vehicle's sensor count and location before ordering. You can confirm sensor positions using your factory service manual, vehicle repair database, or even by locating the physical sensors on the exhaust system. Getting the correct number of upstream and downstream sensors ensures smoother installation, avoids errors during emissions testing, and keeps your check engine light off.

Recommended upstream sensor: DELPHI ES20316
Recommended downstream sensor: BOSCH 15719

How Often Should You Replace an O2 Sensor?

Oxygen sensors generally last between 60,000 and 100,000 miles, but your mileage may vary depending on the age of your Ford, your driving habits, and environmental conditions. Here are some common signs your O2 sensor may need to be replaced:

Check engine light is on, especially with codes like P0131, P0135, P0141, or P0420
Poor gas mileage
Rough idle or hesitation during acceleration
Failed emissions test
Rotten egg smell from exhaust (indicates catalytic converter stress, often due to bad sensors)

Even if you’re not experiencing any of these symptoms, replacing an aging O2 sensor as preventative maintenance can help improve your 1997 Ford Ranger’s performance and fuel economy.

Tools Needed to Replace an Oxygen Sensor

Replacing an O2 sensor is typically easier than most people expect. In most cases, you can do this job with a few basic tools:

Oxygen sensor socket or wrench – DURATECH 5PCS O2 Oxygen Sensor Socket Thread Chaser Set, 3/8" 1/2" Drive x 7/8" 22mm Oxygen Sensor Wrench Remover O2 Sensor Removal Tool Kit
Torque wrench – SUZUME 3PCS Torque Wrench Set 72 Teeth Dual-Direction Adjustable Torque Wrench Dual-Scales 1/4 & 3/8 & 1/2-Inch ±3% Accuracy Click Torque Wrenches for Bicycle, Motorcycle, Car,Maintenance
Ratchet and extension – Universal options work fine
Anti-seize compound – Permatex 80078 Anti-Seize Lubricant With Brush Top Bottle Prevents Galling, Corrosion, Seizing, Refined Blend Aluminum, Copper, And Graphite Lubricants For Spark Plugs 8 oz (check if your new sensor already comes pre-coated!)
Penetrating oil – To loosen rusted or seized sensors

Optional but helpful:

OBD-II scanner – ANCEL AD310 Classic Enhanced Universal OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool, Read and Clear Error Codes for 1996 or Newer OBD2 Protocol Vehicle (Black) for reading and clearing engine codes
Jack and jack stands – Amazon Basics Steel Jack Auto Stands with 6,000 lb or 3 Ton (2.7 metric Ton) Capacity, 1 Pair, Black and Red if your sensor is hard to reach underneath

Many O2 sensors are easy to access from the engine bay or from under the car with minimal lifting, but always ensure your vehicle is securely supported if you need to raise it.

Step-by-Step Instructions for Replacing the Oxygen Sensor on a 1997 Ford Ranger

Before you start:

Always work on a cool engine to avoid burns from the exhaust system.
Disconnect the negative battery terminal to ensure safety.
Use an OBD-II scanner to confirm which sensor is faulty if you haven't already.

1. Locate the Oxygen Sensor

Refer to your vehicle’s manual or online diagrams to find the location of the faulty sensor. Upstream sensors are usually located between the exhaust manifold and catalytic converter; downstream sensors sit just after the catalytic converter.

2. Apply Penetrating Oil

Spray some penetrating oil around the base of the sensor and give it a few minutes to soak in. This will help loosen any rust and make it easier to remove.

3. Disconnect the Sensor

Follow the wire from the sensor to its electrical connector and carefully unplug it. You may need a flathead screwdriver to release the clip.

4. Remove the Old Sensor

Use your oxygen sensor socket or wrench to remove the sensor. These are typically 7/8" (22mm). Turn counterclockwise until it's free. Be patient—older sensors can be stubborn.

5. Apply Anti-Seize (If Needed)

Check your new sensor—many already have anti-seize on the threads. If it doesn’t, apply a small amount of anti seize to the threads (avoid the tip!).

6. Install the New Sensor

Thread in the new sensor by hand to avoid cross-threading. Then tighten with a torque wrench to your vehicle’s spec (commonly 30–40 ft-lbs—check your FSM or sensor instructions).

7. Reconnect the Wiring Harness

Plug the connector back in until it clicks. Make sure it’s secure and that the wiring is routed away from hot engine or exhaust components.

8. Clear the Code and Test

Reconnect the battery, start the engine, and use your OBD-II scanner to clear the fault code. Let the engine idle and take a short test drive to ensure everything is working smoothly.

Tips for Success

Don’t over-tighten. Oxygen sensors are delicate. Use a torque wrench to avoid cracking the sensor or stripping threads.
Use dielectric grease on the connector terminals if you live in a humid or salty environment—it can help prevent corrosion.
Replace in pairs if your vehicle has high mileage and you suspect both sensors are original. Sensors tend to fail in close succession.
Double-check the part number. Some vehicles require sensors with specific connectors or wire lengths. Always verify with your VIN or trusted parts catalog.

Final Thoughts

Replacing your oxygen sensor on a 1997 Ford Ranger is a smart maintenance move that pays off with better gas mileage, smoother engine performance, and a healthier emissions system. Even if you're not experiencing driveability issues, a fresh O2 sensor can help your engine "think" more clearly and run more efficiently.

Best of all, this is a task most home mechanics can tackle in under an hour with minimal tools. With a reliable replacement sensor like the one we recommend above and some basic preparation, your Ford will be back to peak performance in no time.

Looking for the tools mentioned in this guide? Check out our top recommendations:

Happy wrenching!
